More log cabin damage is caused by water at the foundation than by any other source. Rain that pools near the base of logs creates ideal conditions for rot, insect infestation, and frost heave.
Foundation drainage isn’t complicated, but it requires attention to detail. Here is what every cabin owner should know.
How Water Damages Cabins
When water collects near your cabin’s foundation, several things happen:
Splash-back. Rain hits the ground and splashes up onto the bottom logs, keeping them constantly moist.
Capillary wicking. Water is drawn up into the logs from the foundation through capillary action, like a paper towel dipping into water.
Freeze-thaw damage. Water in the soil expands when it freezes, putting pressure on the foundation and potentially shifting it.
Insect attraction. Damp soil near the foundation attracts carpenter ants and termites.
The result is that the bottom 12–24 inches of your cabin’s walls are at the highest risk for damage. Good drainage eliminates this risk at its source.
The Grade: Your First Defense
The ground around your cabin should slope away from the foundation at a rate of at least 1 inch per foot for the first 5–6 feet. This is called positive grading.
How to check your grade:
- During or just after a steady rain, walk around the cabin.
- Watch where water flows. It should move away from the foundation, not toward it.
- Look for areas where water pools or puddles near the walls.
Fixing poor grade: Add fill soil to create a slope away from the cabin. Use compactable soil, not topsoil (topsoil settles too much). Aim for a slope that extends at least 6 feet from the foundation.
Don’t simply pile soil against the logs — this creates a worse problem by putting dirt in direct contact with the wood. The soil should slope away from the foundation, not up against the walls.
Gutters and Downspouts
A properly designed gutter system is essential for foundation drainage.
Key requirements:
- Gutters should be clean and free-flowing
- Downspouts should discharge water at least 4–6 feet from the foundation
- Splash blocks or downspout extenders should direct water away, not just dump it at the base of the wall
Common problems:
- Downspouts that empty too close to the foundation
- Missing downspout sections
- Gutters that overflow during heavy rain (may need larger size or more downspouts)
- Leaking gutter seams that concentrate water in one spot
French Drains and Dry Wells
If your cabin is in a low area or has persistent drainage problems, a French drain may be necessary.
What a French drain does: A perforated pipe buried in a gravel trench collects groundwater and directs it to a discharge point away from the cabin. The trench is typically 12–18 inches deep and lined with landscape fabric to prevent soil from clogging the system.
Installation approach:
- Dig a trench around the foundation or in the problem area
- Line with landscape fabric
- Add 2–3 inches of gravel
- Lay perforated pipe with holes facing down
- Fill with gravel
- Cover with soil and restore the grade
French drains are not DIY-friendly if the trench is long or deep. A professional installation for a cabin typically costs $1,000–$4,000 depending on length and complexity.
The Splash Zone
The area where rain hits the ground and splashes onto the logs is called the splash zone. This area needs special attention.
Creating a splash zone barrier:
- Install a gravel strip 18–24 inches wide around the entire cabin
- The gravel should be 3–4 inches deep
- Use washed river gravel or crushed stone (not pea gravel, which scatters)
- Keep the gravel level slightly below the bottom of the logs
Gravel prevents soil from splashing onto the logs, allows water to drain quickly, and creates a clean visual transition.

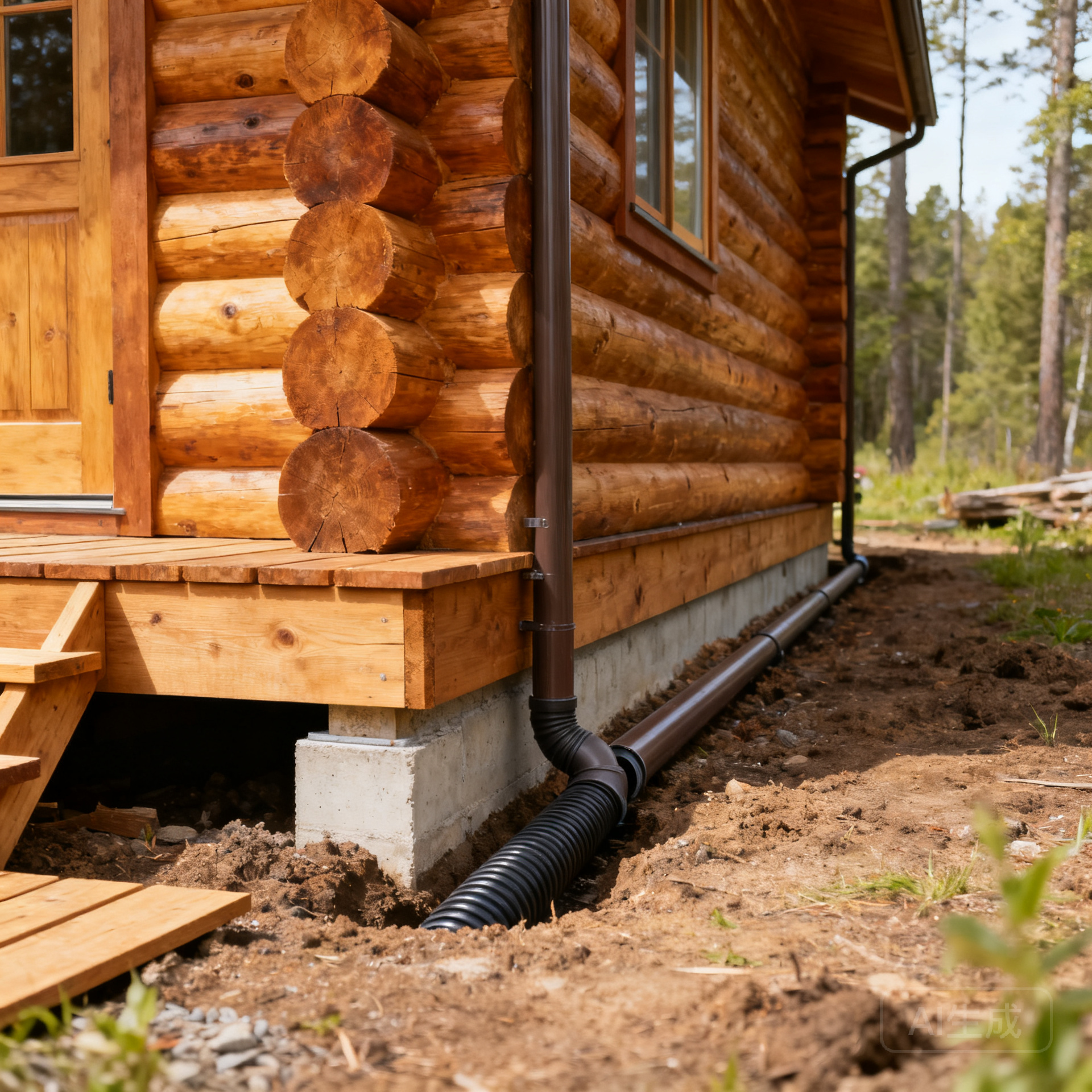

Downspout Extensions
Standard downspouts often discharge water right at the foundation wall. This is ineffective at best and damaging at worst.
Options for extending downspout discharge:
| Option | Cost | Effectiveness | Ease of Installation |
|---|---|---|---|
| Flexible extension | $5–$15 | Moderate | Very easy |
| Rigid extension | $10–$25 | Good | Easy |
| Underground pipe | $50–$200 | Excellent | Moderate |
| Dry well | $200–$500 | Excellent | Difficult |
For most cabins, rigid extensions that carry water at least 4 feet from the foundation provide adequate protection at very low cost.
Seasonal Drainage Checklist
Spring (after snow melt):
- Check that ground is sloping away from foundation
- Clear gutters of winter debris
- Verify downspouts are attached and functional
- Look for erosion or settling near the foundation
Fall (before winter):
- Clean gutters thoroughly after leaf drop
- Check downspout extensions are in place
- Confirm French drains (if installed) are not blocked
- Address any pooling water areas before they freeze
After major storms:
- Walk around the cabin during heavy rain
- Watch where water flows and pools
- Identify problem areas that need attention
When Drainage Problems Are Beyond DIY
If you’ve addressed grading, gutters, and downspouts but still have water pooling near the foundation, you may have a subsurface drainage issue. Signs include:
- Persistent dampness in the crawl space or basement
- Water stains on foundation walls
- Soil that stays wet for days after rain
- Erosion channels forming near the foundation
In these cases, consult a drainage specialist or foundation contractor. Solutions may include perimeter drains, sump pumps, or foundation waterproofing.
